Compact, versatile two-sided planer/moulder with 2 cutting heads, 3 individual motors, 11-13/16” wide x 4” high two-sided planing/moulding capacity, 6 - 40 fpm variable power feed, and 5,840 rpm spindle speed.
Compact, versatile two-sided planer/moulder with 2 cutting heads, 3 individual motors, 11-13/16” wide x 4” high two-sided planing/moulding capacity, 6 - 40 fpm variable power feed, and 5,840 rpm spindle speed.

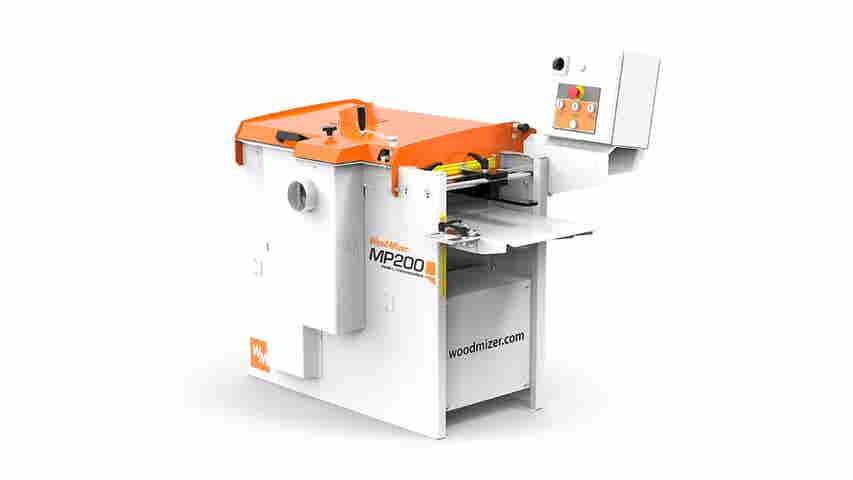

Plane and mould material on one or two sides at once with the MP200 2-Sided Planer Moulder. The MP200 includes 1 horizontal top cutter and 1 vertical side cutter that can be fitted with planing knives or moulding profile knives to produce finished mouldings or flooring. With the top cutter and side cutter, planing or moulding material is completed on one or two adjoining sides in one pass. The power feed rollers move the board under the horizontal cutter and past the vertical side cutter with each pass. After planing the top and side of the board, simply flip the board over, adjust the table height, and plane the final two sides. After moulding a profile on the top or side of the board, simply change out the knives, adjust the table height and then mould the final two sides. With the MP200, you can completely plane and mould material on all four sides in only two passes. The MP200 is built to last with heavy duty cast-iron tables, durable sheet steel chassis, and premium components. Engineered for woodworkers, carpenters, or joiners in the construction trade, the MP200 planer/moulder can produce a variety of professionally finished products including flooring, planed boards, crown moulding, cabinet trim, paneling, door and window frames, furniture components, and more. Proven in workshops throughout the world, the MP200 is backed by the same legendary service, quality and safety features shared by the entire family of Wood-Mizer wood processing equipment.

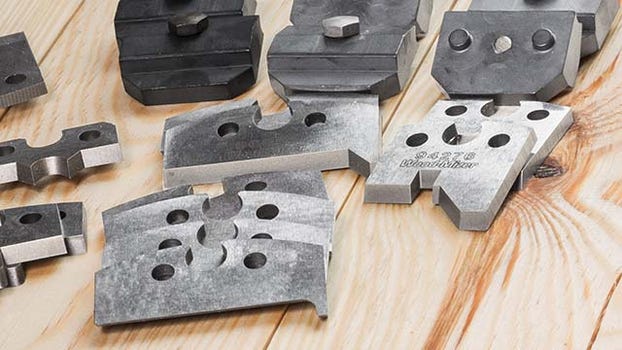

Profile knives
Possibility of using profile knives on both cutterheads to make various shapes and profiles of final wood products

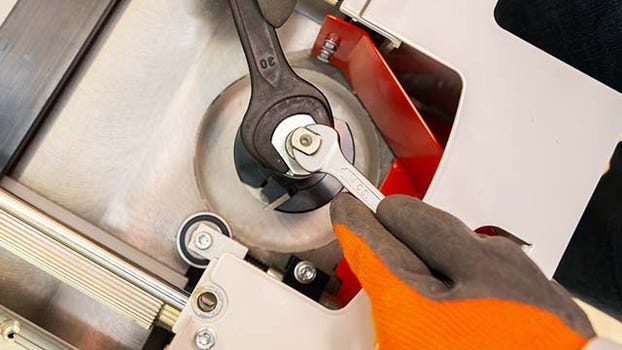

Side cutterhead
Easy and quick installation/deinstallation of the side cutterhead for saving time and increasing productivity

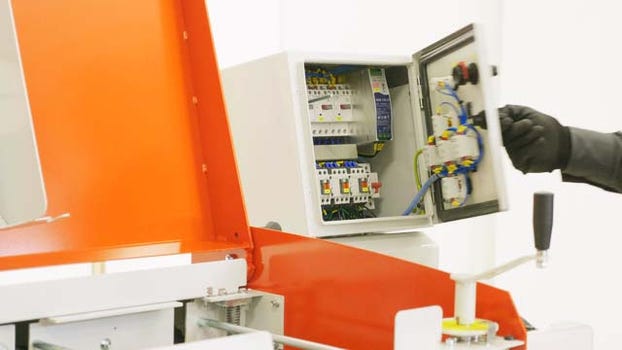

Power supply outlet
Power supply outlet on the electrical box already accommodated for plugging in the power. You can start working right after unboxing the machine

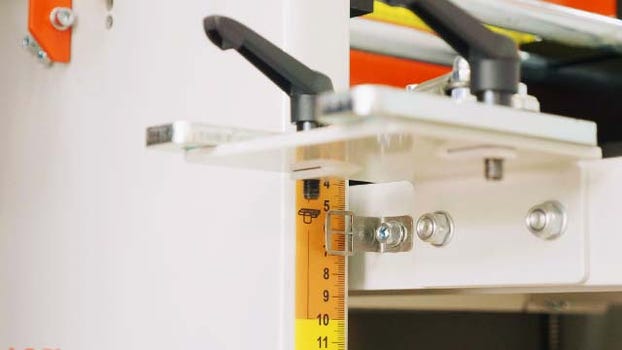

Height indicator
Clear indicator showing the height of the planing table, allowing for precise control of planing parameters

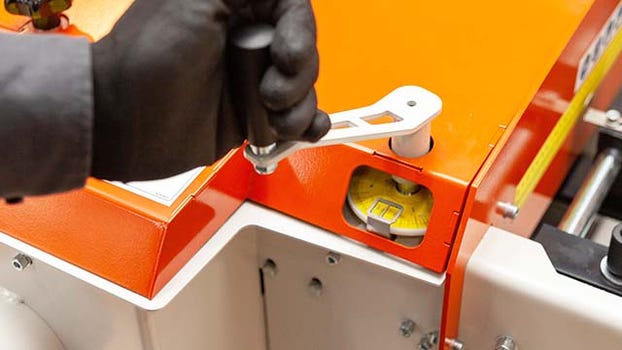

Height adjustment
Quick height adjustment of the planing table by turning a hand crank, allowing for comfortable changing of planing parameters

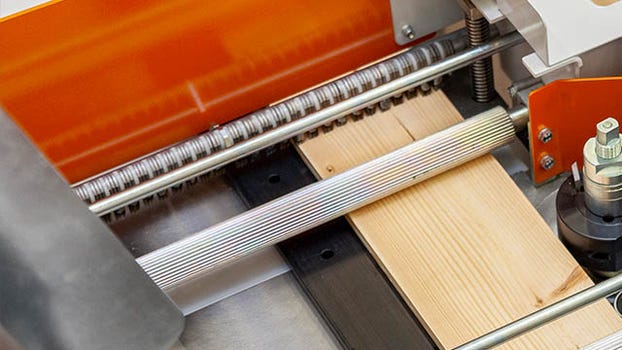

Assistant roller
Assistant roller on the infeed table optimizing the material feeding process

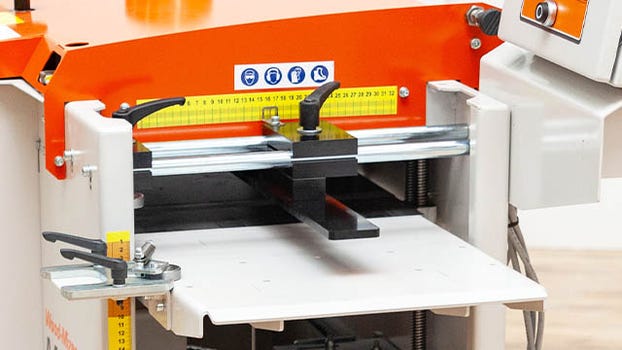

Infeed ledger with indicator
Adjustable infeed ledger with the indicator showing the material width

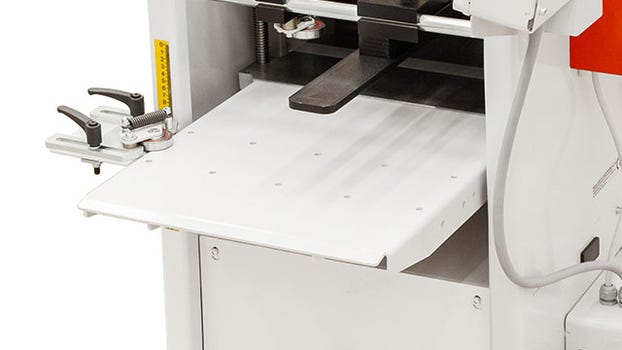

Extension table
Possibility of adding infeed or outfeed table by another 1,2 m long section

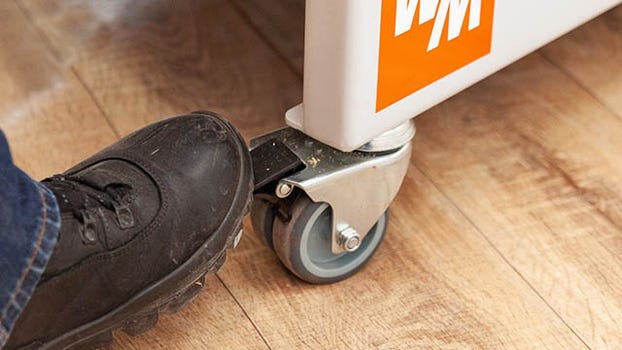

Caster wheels
Optional caster wheels with brakes for easy and quick transportation around the workshop

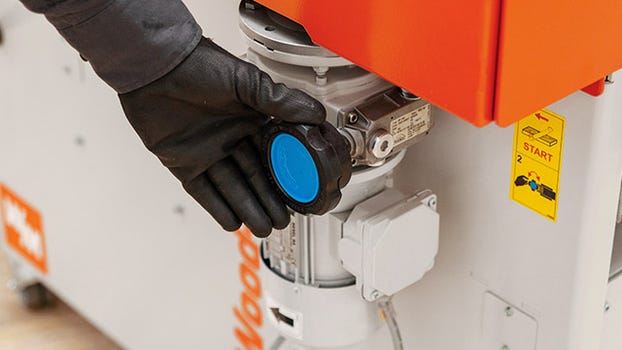

Variable feed speed
Optional variable feed speed of 2-12 m/min
| Horizontal cutter | |
|---|---|
| Diameter | 2-13/16" (72mm) |
| Vertical spindle | |
| Motor | 4 HP (3 kW), 3-phase |
| Spindle Diameter | 1-1/4" (32mm) |
| Tool Diameter | 140 mm |
| Thicknessing | |
| Max. Height | 220 mm |
| Max. Width | 16 1/8" (410mm) |
| Table Length | 830 mm |
| Max. Cutting Depth | 1/4" (6mm) |
| Moulding | |
| Max. Height | 100 mm |
| Max. Width | 12 1/4" (310 mm) |
| Max. Cutting Depth | 3/8" (10 mm) |
| Feed System | |
| Feed Motor | 0.18 kW (0.25 HP), 3-phase0.37 kW (0.5 HP), 3-phase (with planetary gearbox) |
| Feed Speed | 5 m/min2-12 m/min (with planetary gearbox) |
| Feed Roller Diameter | 32 mm |
