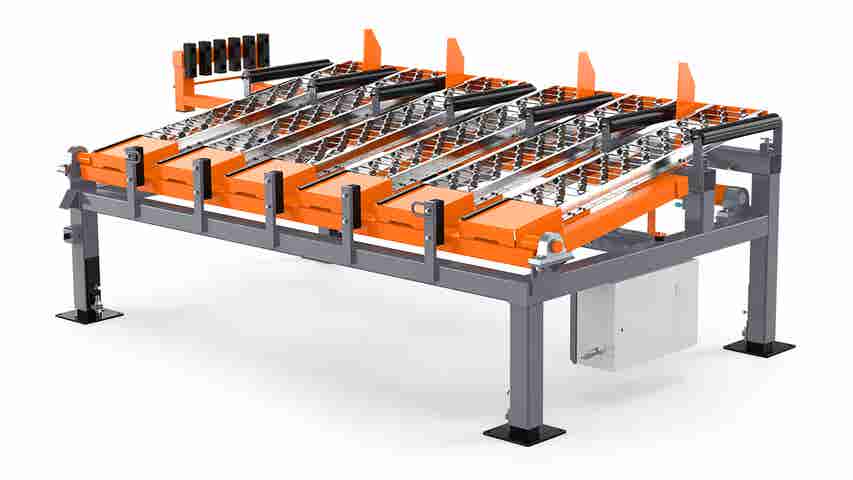

This unique piece is a brilliantly simple way to transfer
material quickly and efficiently. After the material
moves onto the rollers from the Incline Conveyor, a
sensor activates an air bag which is connected to a
set of inclined cross transfer rollers. The cut piece
then rolls down the incline to a stop location, or onto

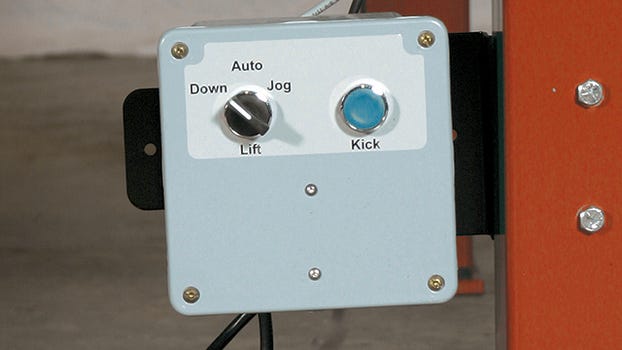

another conveyor. Alternatively, the sawyer or other

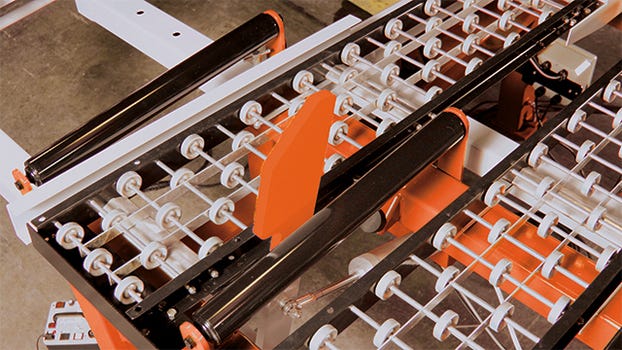

operator can activate pneumatic kickers to push
the piece off the opposite side. There are no chains,
gears, or motors, which makes operation simple with
little maintenance. The Transfer Table can be set up
for either right or left hand operation.
