Wood-Mizer’s knowledge of customer needs in international markets has delivered a sawmill that is the best that both narrow and wideband technologies have to offer.
Wood-Mizer’s WB2000 features heavy-duty construction, low maintenance requirements, and efficient operation. The WB2000 uses wideband 75 mm blades or 100 mm stellite-tipped blades. When using 75 mm blades (available with 22.22 mm and 28.50 mm tooth spacing) the sawmill is especially cost-efficient in terms of blade maintenance costs. To ensure the best visibility of the cutting and log handling processes we offer an optional live-feed video system with two cameras as standard, expandable up to four cameras.
The PRO version of the sawmill uses an automatic PLC setworks system.

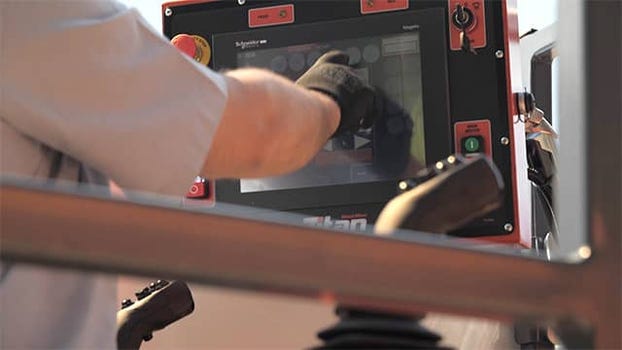

The 12-inch touch-screen displays various parameters such as the dimensions of the material, current head height, feed position and main engine power. To adjust these parameters, the operator simply has to use the touch screen to enter new settings.
The EC version uses a 5.7-inch touch-screen with the latest version of the SW PLC3 Setworks system.
The modern, heavy-duty bed has a log capacity of up to 6 tonnes. The massive twin C-channel steel beams that make up the frame are 400 mm tall by 110 mm wide. All hydraulic log handling functions - such as the log clamps, chain turners, power rollers, side supports and hold-down clamps - are modular, and can be moved to different bunks as needed.
The WB2000 can be used used as a standalone sawmill to fully process a log, or in addition to an existing business to process irregular logs or to produce custom orders that the existing equipment is not suited for. Thanks to the various hydraulic packages and bed lengths, the sawmill is very versatile. It can saw large diameter softwood, hardwood and tropical logs from 2.4 meters up to 12 meters.
he WB2000 High-Performance Industrial Sawmill combines the increased yield of thin-kerf blade technology with the durability and reliability that high-production operations demand. Packed with high-performance features, the WB2000 includes a powerful 50HP electric motor, heavy-duty construction, low maintenance, HMI cab operated feed controls, two camera video system, and an efficient operation with precision setworks for sawing large diameter softwood, hardwood, and tropical logs. The WB2000 can be used as a standalone sawmill to fully process a log, or in addition to an existing system to process irregular logs or produce custom orders.
The 12-inch touch-screen displays various parameters such as the dimensions of the material, current head height, feed position and main engine power.

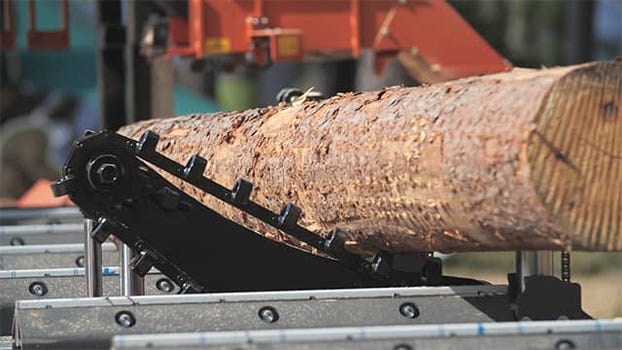

Bi-directional Chain Turner
Equipped with a chain turner for quick log turning

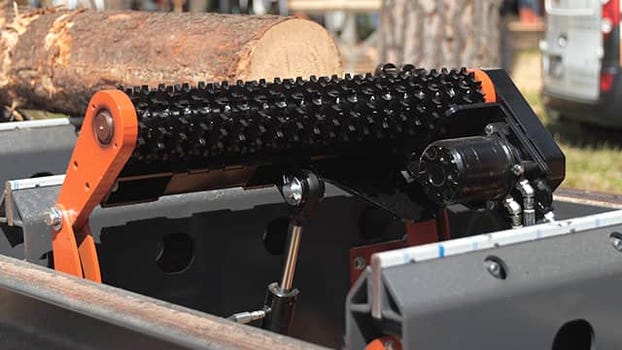

Log Leveling and Cant Removal Roller
Used for positioning the log in the
optimal place on the bed, and also
for removing cants from the sawmill.

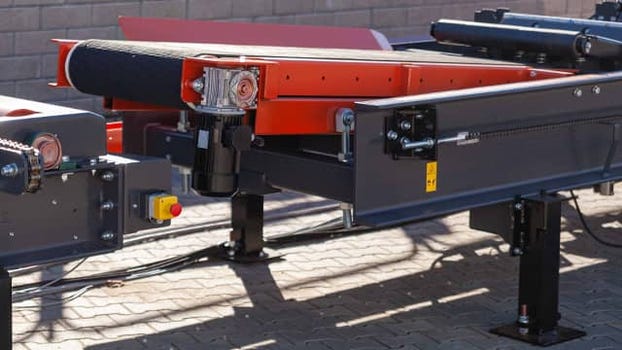

Belt-conveyor
Located at the rear of the bed.
Activates automatically when
the head returns, ensuring
efficient material flow. Tilt angle
can be adjusted.

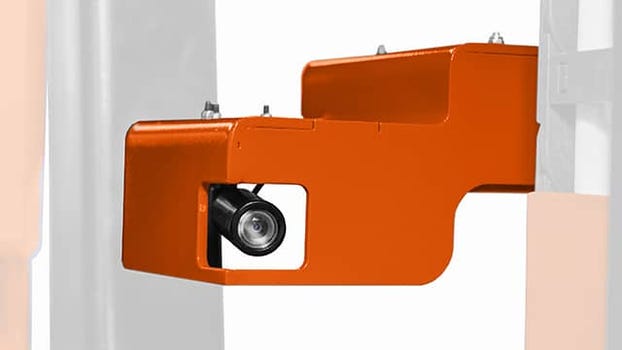

Cameras & Screen
Ensures complete oversight of the
cutting process. The standard
version is equipped with 2 cameras,
and up to four cameras can be
mounted.

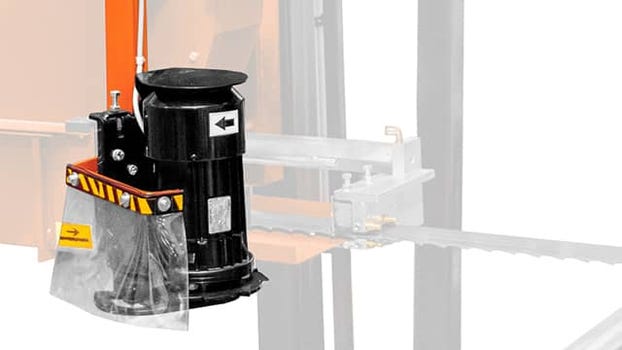

Debarker
Removes dirt and rocks from the
blade path, keeping the blades
in better condition between
sharpening, and extending overall
blade life. Available as an option.

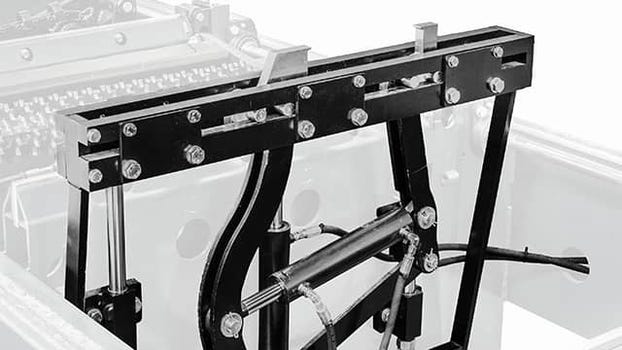

Hold Down Clamps
Clamps the cant from two sides
during cutting. Excellent for cants
with internal stress.

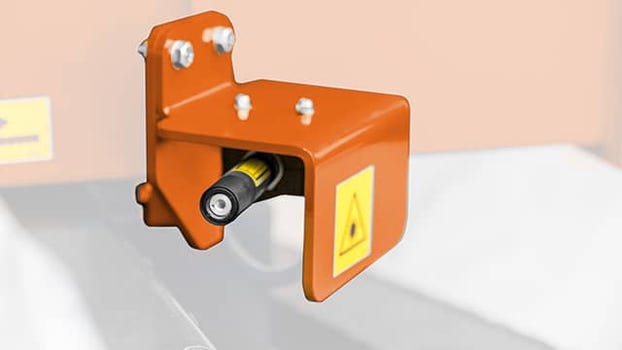

Laser Sight
A laser beam indicates where
the blade will cut through the log.
Available as an option.

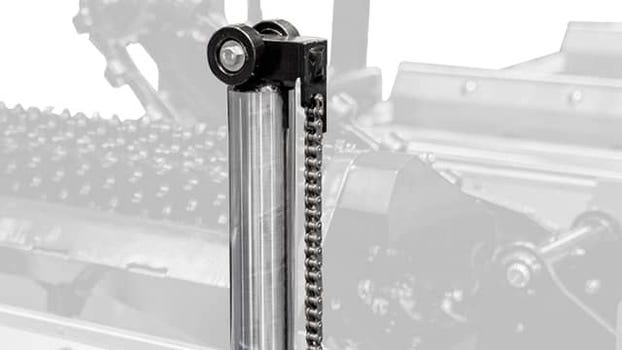

Vertical Side Support
Keeps the log on the bed during
loading and turning. Ensures the
timber remains stable during
the cutting process.
Hydraulic Blade Tension
Maintains the pressure in the
blade tensioning system.

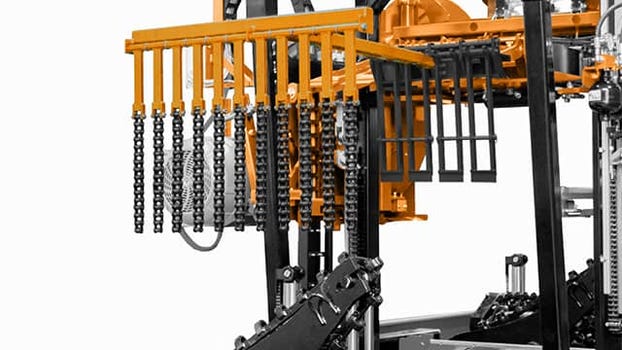

Board Removal System
Includes board removal fingers,
chains and shock absorbing roller.
