Entry-level hydraulic portable sawmill for increasing productivity featuring complete hydraulic log handling, powered saw head controls with setworks, and optional debarker.
Entry-level hydraulic portable sawmill for increasing productivity featuring complete hydraulic log handling, powered saw head controls with setworks, and optional debarker.

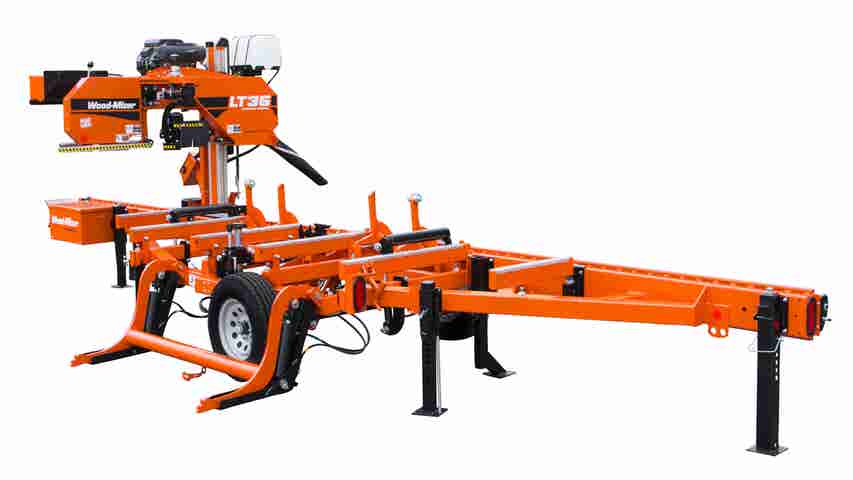

Reduce manual labor and increase productivity with complete hydraulic log handling, easy-to-use powered saw head controls (forward/reverse & up/down), and SimpleSet Setworks with the LT35 hydraulic portable sawmill.
The LT35 hydraulic is completely portable and ready for road travel with a standard single axle trailer and electric brakes. Six adjustable outriggers allow for quick set-up and simple leveling of the bed prior to sawing. The patented cantilever open side of the LT35 hydraulic sawhead allows for minimal leveling during set-up, easy off-bearing with the trapezoid shaped bed, and sawing of odd shaped logs.
Operation

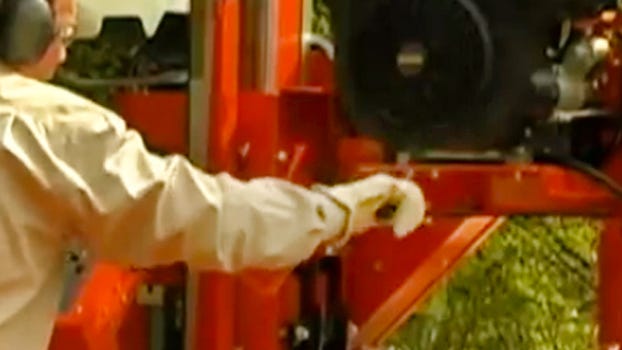

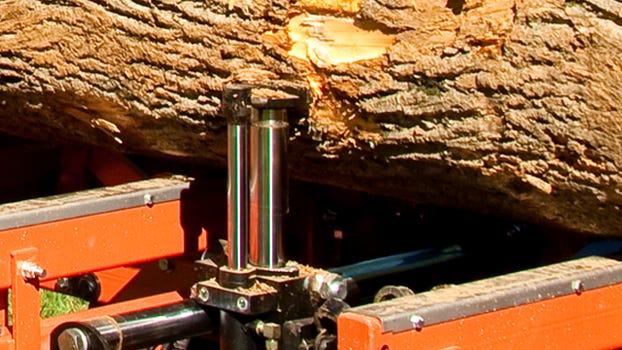

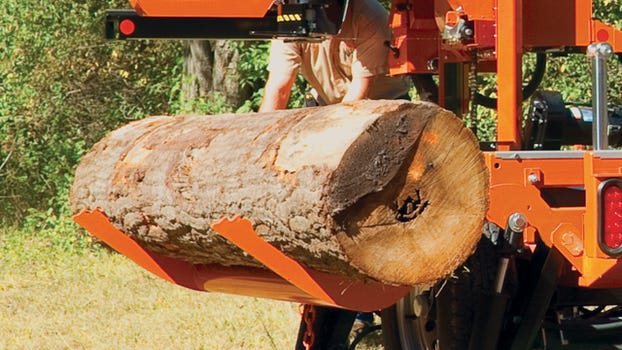

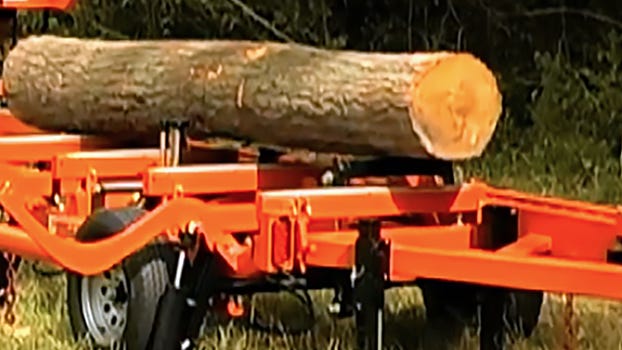

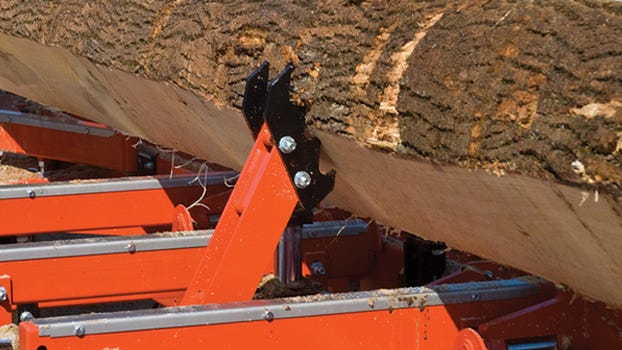

Loaded and turned hydraulically with loading arms and a steel claw turner, logs are secured onto the bed by four side supports (two hydraulically controlled) and a heavy-duty hydraulic log clamp. Two hydraulic roller toeboards assist with precise leveling of the log on the bed for tapered logs. SimpleSet Setworks and powered head controls position the saw head height to prepare for sawing. With SimpleSet, sawyers can program two exact board thicknesses and SimpleSet will automatically move the head into position for the next cut while referencing from the previous cut in order to produce lumber more quickly and accurately. Once the blade is engaged with a handle, the saw head advances through the log with the power feed control that includes variable speed for optimal sawing control. Once the cut is completed, the saw head is raised and reversed by the powered saw head controls and positioned for the next cut. A water tank feeds lubrication directly to the blade to improve cutting performance and keep the blade clean. An optional debarker helps extend blade life between sharpenings by clearing a ¼” wide path in front of the sawmill blade’s cut entry. The adjustable blade guide arm keeps the blade well supported while cutting various sized material. Blade tension is easily adjusted, and keeps the blade at the proper tension for cutting.
Features
- 32" max log diameter with 26" max width of cut and 21' length of cut
- Complete hydraulic log handling (log loading arms, toeboards, claw log turner, log clamp, and two side supports)
- Powered saw head up/down & forward/reverse

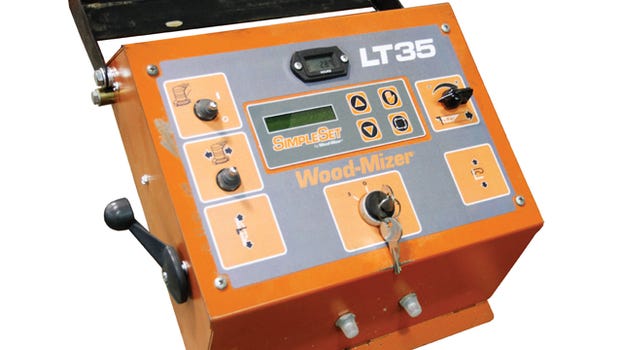

- SimpleSet Setworks allows two pre-set board thicknesses to quickly and accurately control blade height while referencing from the previous cut
- Standard trailer with patented cantilever design and trapezoid shaped bed
- Built in the USA
Popular Options
- Debarker removes dirt and bark from the blade path for longer blade life
- Fine-adjustment outriggers for precise bed leveling and stability in the most uneven setups
- 6' , 12' , or 24' bed extensions can be added to saw longer lengths (45' max length of cut)
The LT35 hydraulic portable sawmill comes fully assembled with one Wood-Mizer sawmill blade. Free one-on-one sawmill training by an experienced service representative is included during your Wood-Mizer location pick up or home delivery. With a 30-day money back guarantee, 2-year sawmill warranty, and 5-year chassis warranty, the LT35 hydraulic is backed by the same level of service, quality and safety features shared by the entire family of Wood-Mizer wood processing equipment.
